Dimmable type:DALl& Push-Dimming
2025-04-11
Widely used in various fields such as lighting, outdoor landscape lighting, indoor home lighting, and advertising signs in many countries and regions around the world.

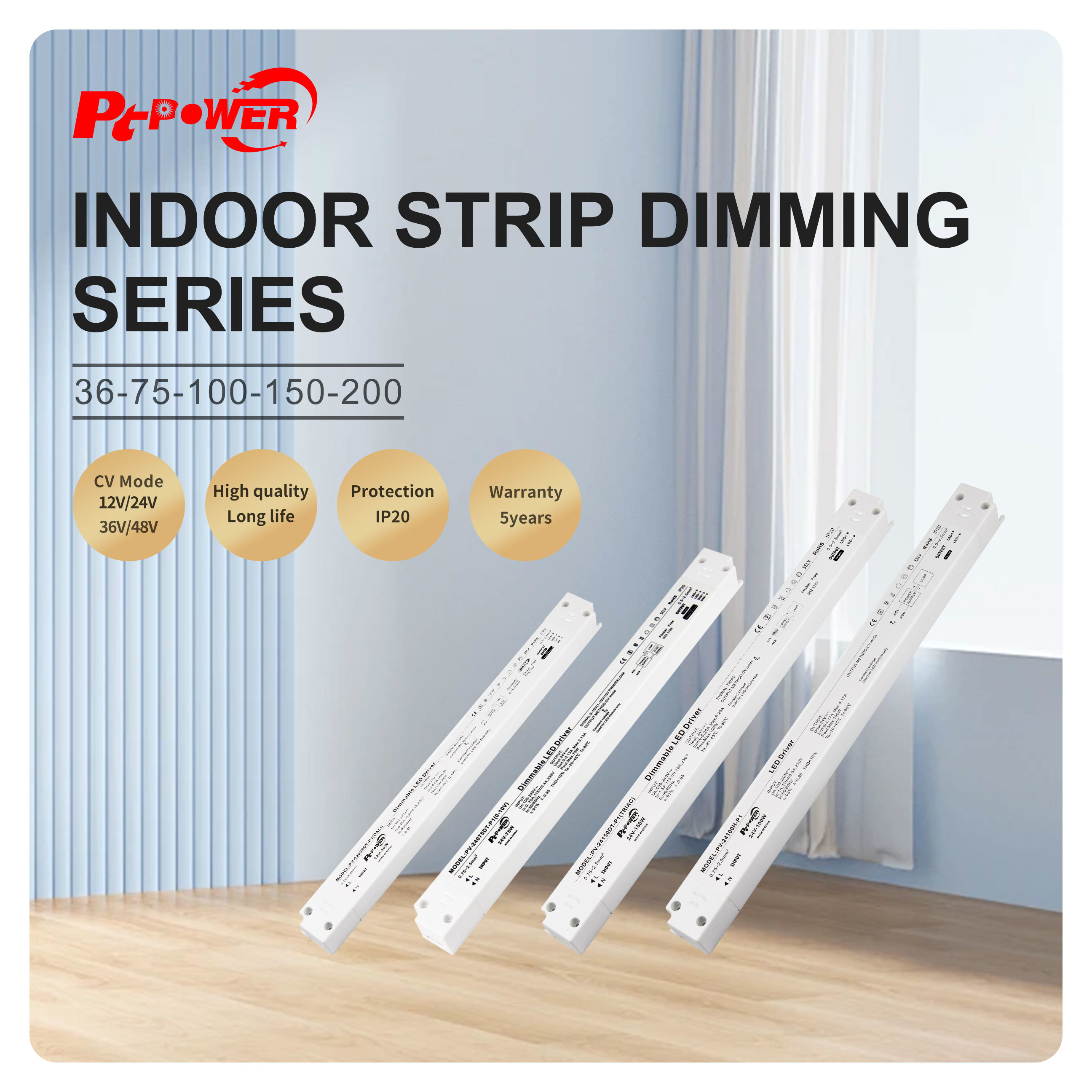

IP20 Linear Plastic Shell
Dimmable type:DALl& Push-Dimming
PWM digital dimming without changing color temperature index (CV Mode)
Beautiful design,natural and smooth dimming,Flicker-Free
Dimming depth 0.1%,dimming range 0-100%
Lamp monitoring: accurately judge lamp failure (lamp short circuit and open circuit)
Comply with EU ERP directive on energy efficiency, Standby power consumption <0.5W
High efficiency power supply:Efficiency 92%,PF>0.95,THD<10%
Working temperature:-25°C~+50°C
Protection grade:lP20
Short circuit protection: remove output, turn-off power supply 15 seconds, then open power supply again,power supply recover
Support DALl standard agreementlEC62386
EMC standards:EN55015、EN61000-3-2、EN61000-3-3
Safety standards:EN61347-1、EN61347-2-13
Suitable for class l,ll,lll LED lighting
No minimum loading requirements
5-Year warranty
