IP20 UL PFC Linear Plastic Shell

High-performance power supply, built-in active PFC, power factor>0.95.THD<10%@120V maximum load

With short-circuit,over-temperature, overload protection function

Suitable for damp, dry and wet location

Safety standard:UL8750(Class 2, Class P, TYPE HL),CAN/CSA-C22.2 No.250.13

EMC emission: FCC part 15

5 Year limited warranty

IP20 UL PFC Linear Plastic Shell

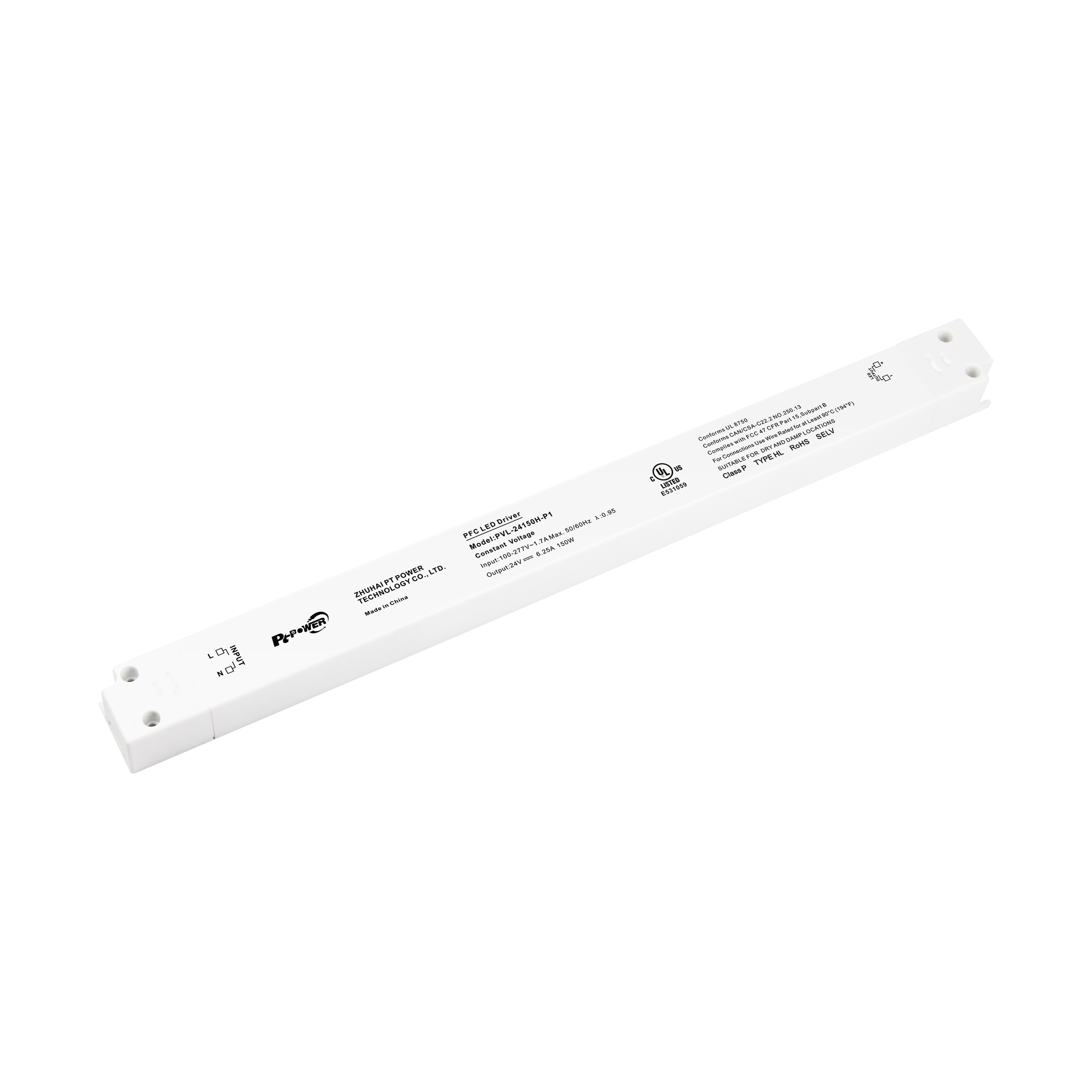

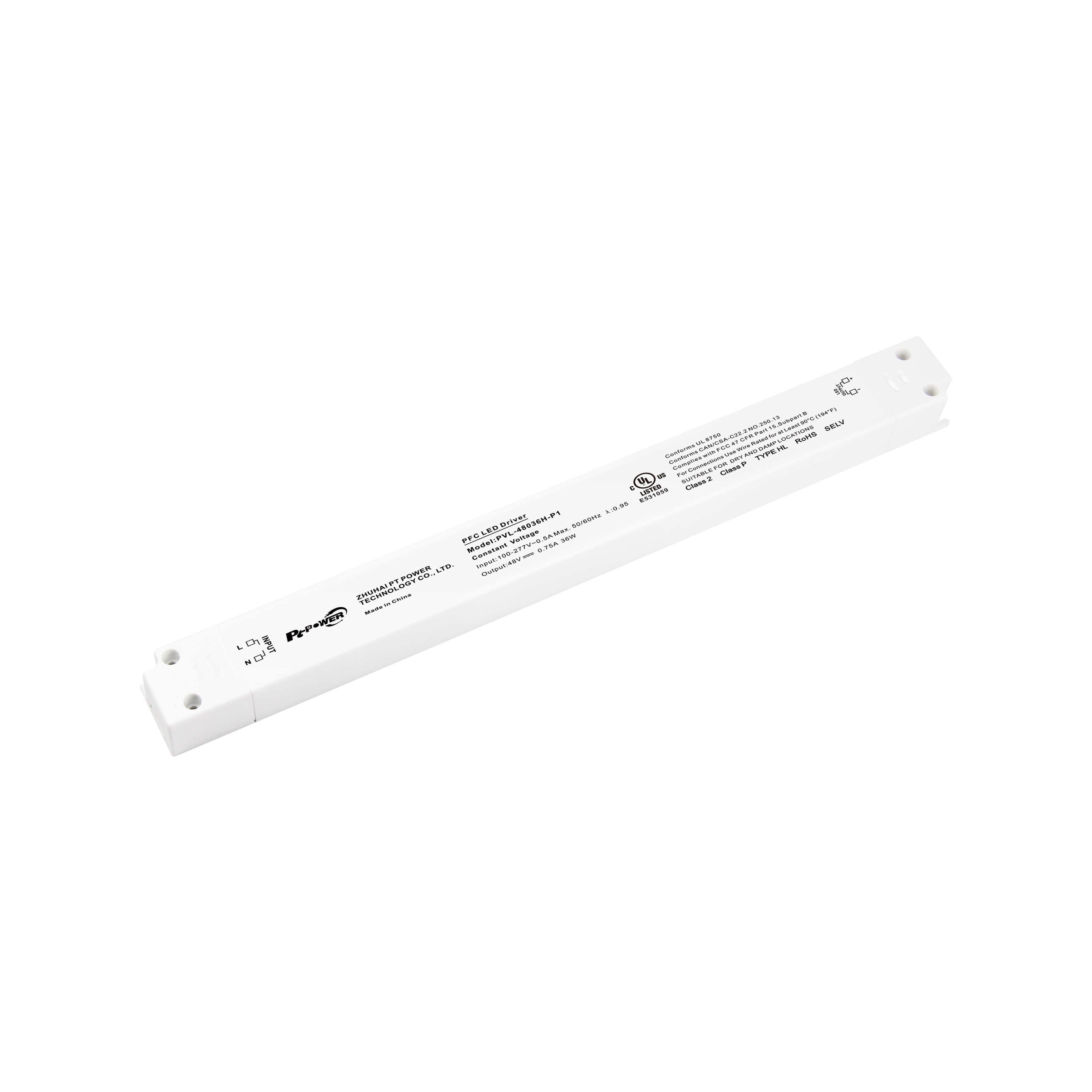

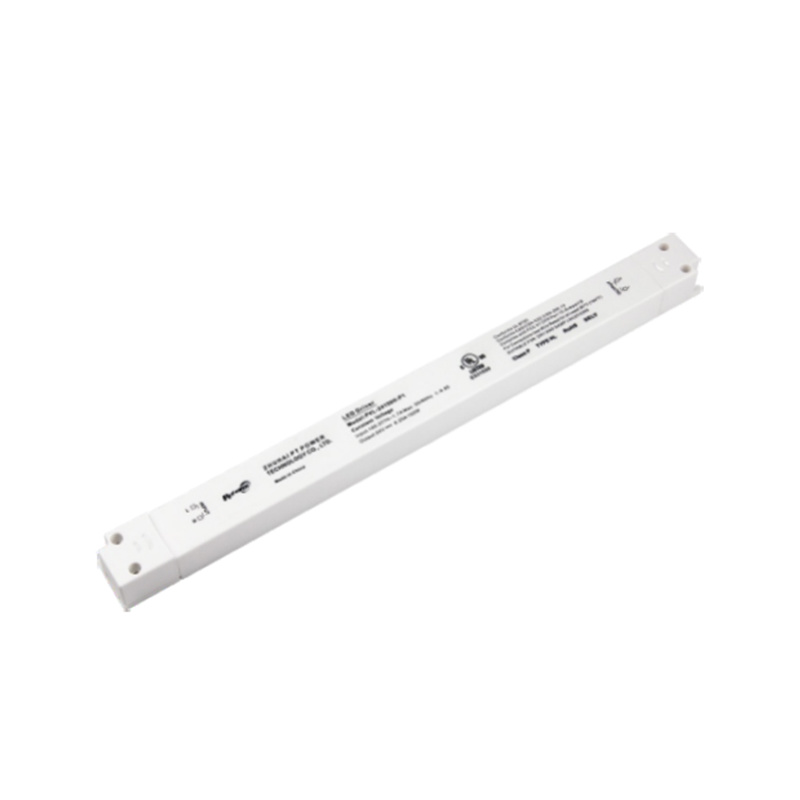

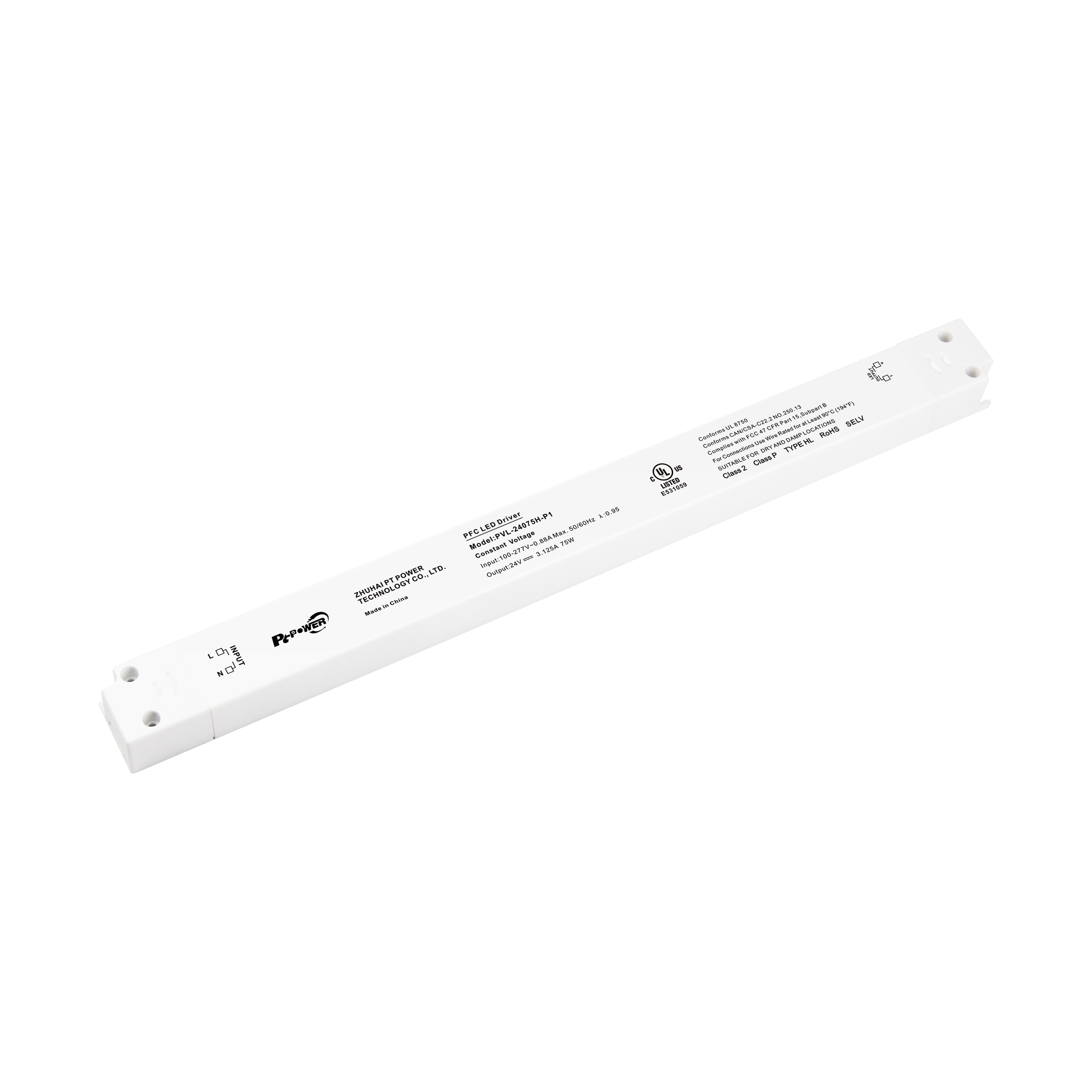

PVL-24150H-P1 (75W 100-277V AC-DC 24V)

PVL-24150H-P1 Type: Constant Voltage PFC LED Driver Power: 150W IP Rate: IP20 Input voltage: 100-277V AC Output voltage: 24V DC Output current: 0-6.25A Efficiency: 92% Power factor: PF0.95 Size: 364*31*22.5mm(L*W*H)

PVL-24100H-P1 (100W 100-277V AC-DC 24V)

PVL-24100H-P1 Type: Constant Voltage PFC LED Driver Power: 100W IP Rate: IP20 Input voltage: 100-277V AC Output voltage: 24V DC Output current: 0-4.17A Efficiency: 92% Power factor: PF 0.95 Size: 364*31*22.5MM(L*W*H)

PVL-12100H-P1 (100W 100-277V AC-DC 12V)

PVL-12100H-P1 Type: Constant Voltage PFC LED Driver Power: 100W IP Rate: IP20 Input voltage: 100-277V AC Output voltage: 12V DC Output current: 8.33A Efficiency: 91% Power factor: PF 0.95 Size: 364*31*22.5mm(L*W*H)

PVL-24096H-P1 (96W 100-277V AC-DC 24V)

PVL-24096H-P1 Type: Constant Voltage PFC LED Driver Power: 96W IP Rate: IP20 Input voltage: 100-277V AC Output voltage: 24V DC Output current: 0-4A Efficiency: 91% Power factor: PF 0.95 Size: 364*31*22.5MM(L*W*H)

PVL-24075H-P1 (75W 100-277V AC-DC 24V)

PVL-24075H-P1 Type: Constant Voltage PFC LED Driver Power: 75W IP Rate: IP20 Input voltage: 100-277V AC Output voltage: 24V DC Output current: 0-3.13A Efficiency: 91% Power factor: PF 0.95 Size: 364*31*22.5mm(L*W*H)

PVL-12075H-P1 (75W 100-277V AC-DC 12V)

PVL-12075H-P1 Type: Constant Voltage PFC LED Driver Power: 75W IP Rate: IP20 Input voltage: 100-277V AC Output voltage: 12V DC Output current: 0-6.25A Efficiency: 90% Power factor: PF 0.95 Size: 364*1*22.5MM(L*W*H)

PVL-48036H-P1 (36W 100-277V AC-DC 48V)

PVL-48036H-P1 Type: Constant Voltage PFC LED Driver Power: 36W IP Rate: IP20 Input voltage: 100-277V AC Output votlage: 48V DC Output current: 0-0.75A Efficiency: 80% Power factor: PF 0.95 Size:264*30*18.5mm(L*W*H)

PVL-24036H-P1 (36W 100-277V AC-DC 24V)

PVL-24036H-P1 Type: Constant Voltage PFC LED Driver Power: 36W IP Rate: IP20 Input voltage: 100-277V AC Output voltage: 24V DC Output current: 1.5A Efficiency: 80% Power factor: PF0.95

PVL-12036H-P1 (36W 100-277V AC-DC 12V)

PVL-12036H-P1 Type: Constant Voltage PFC LED Driver Power: 36W IP Rate: IP20 Input voltage: 100-277V AC Output voltage: 12V DC Output current: 0-3A Efficiency: 80% Power factor: PF0.95 Size: 264*30*18.5mm(L*W*H)
