IP67 0-10V 4 in1 - Linear Metal Shell

Widely used in various fields such as lighting, outdoor landscape lighting, indoor home lighting, and advertising signs in many countries and regions around the world.

IP67 0-10V 4 in1 - Linear Metal Shell

1.Dimmable type:0-10V/1-10V/10VPWM/Rx.Dimming

2.Constant voltage design(CV Mode)

3.Beautiful design,natural and smooth dimming,Flicker-Free

4.100% full load aging

5.Comply with EU ERP directive on energy efficiency, Standby power consumption <0.5W

6.Working temperature:-40°C~+60°C

7.Protection grade:lP67

8.With short-circuit protection: the protection mode is hiccup mode,When the short-circuit

9.fault contacts for 3 seconds, the power supply will automatically resume work

10.EMCstandards:EN55015、EN61000-3-2、EN61000-3-3

11.Safety standards:EN61347-1、EN61347-2-13

12.No minimum loading requirements

13.5-Year warranty

IP67 0-10V 4 in1 - Linear Metal Shell

PV-24200DM-M1AW (200W 170-264V AC-DC 24V)

PV-24200DM-M1A Type: Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Driver Power: 200W IP Rate: IP67 Input voltage:170-264VAC Output current:8.33A Output voltage:24VDC Efficiency:92% Power Factor: PF 0.95 Size:362*37*22mm

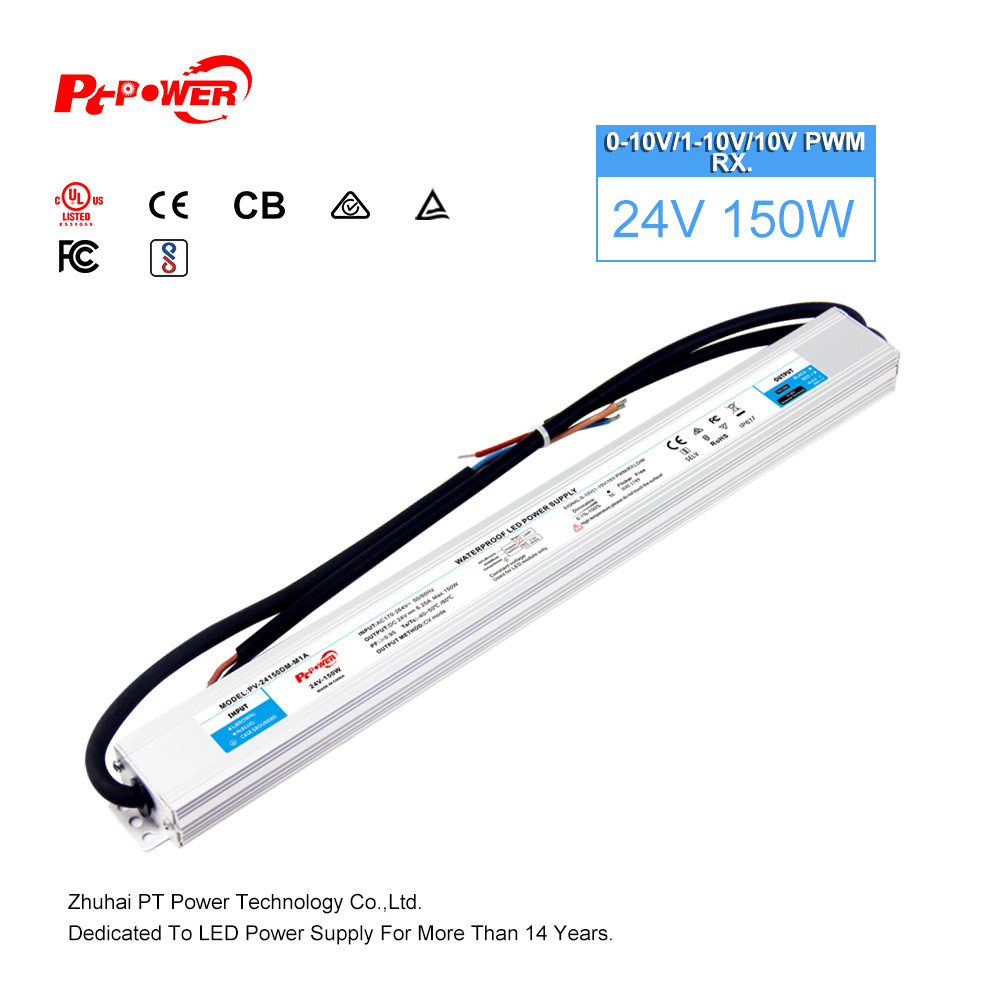

PV-24150DM-M1A (150W 170-264V AC-DC 24V)

PV-24150DM-M1A Type: Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Driver Power: 150W IP Rate: IP67 Input voltage:170-264VAC Output current:6.25A Output voltage:24VDC Efficiency:92% Power Factor: PF 0.95 Size:362*37*22mm

PV-24100DM-M1AW (100W 100-240V AC-DC 24V)

PV-24100DM-M1AW Type: Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Driver Power: 100W IP Rate: IP67 Input voltage:100-240VAC Output current:4.17A Output voltage:24VDC Efficiency:92% Power Factor: PF 0.95 Size:292*37*22mm

PV-12100DM-M1AW (100W 100-240V AC-DC 12V)

PV-12100DM-M1AW Type: Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Driver Power: 100W IP Rate: IP67 Input voltage:100-240VAC Output current:8.33A Output voltage:12VDC Efficiency:91% Power Factor: PF 0.95 Size:292*37*22mm

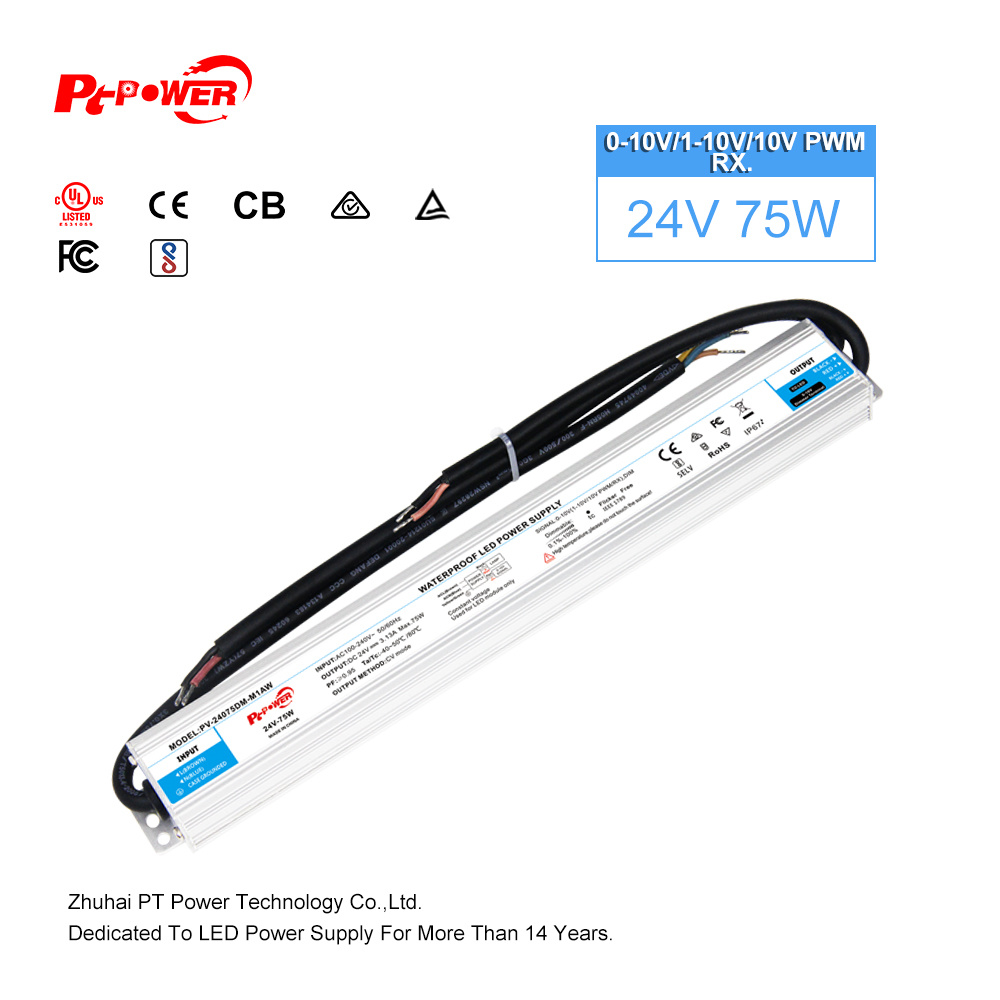

PV-24075DM-M1AW (75W 100-240V AC-DC 24V)

PV-24075DM-M1AW Type: Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Driver Power: 75W IP Rate: IP67 Input voltage:100-240VAC Output current:3.125A Output voltage:24VDC Efficiency:91% Power Factor: PF 0.95 Size:292*37*22mm

PV-12075DM-M1AW (75W 100-240V AC-DC 12V)

PV-12075DM-M1AW Type: Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Driver Power: 75W IP Rate: IP67 Input voltage:100-240VAC Output current:6.25A Output voltage:12VDC Efficiency:90% Power Factor: PF 0.95 Size:292*37*22mm

PV-24036DM-M1AW (36W 100-240V AC-DC 24V)

PV-24036DM-M1AW Type: Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Driver Power: 36W IP Rate: IP67 Input voltage:100-240VAC Output current:1.5A Output voltage:24VDC Efficiency:85% Power Factor: PF 0.95 Size:260*37*22mm

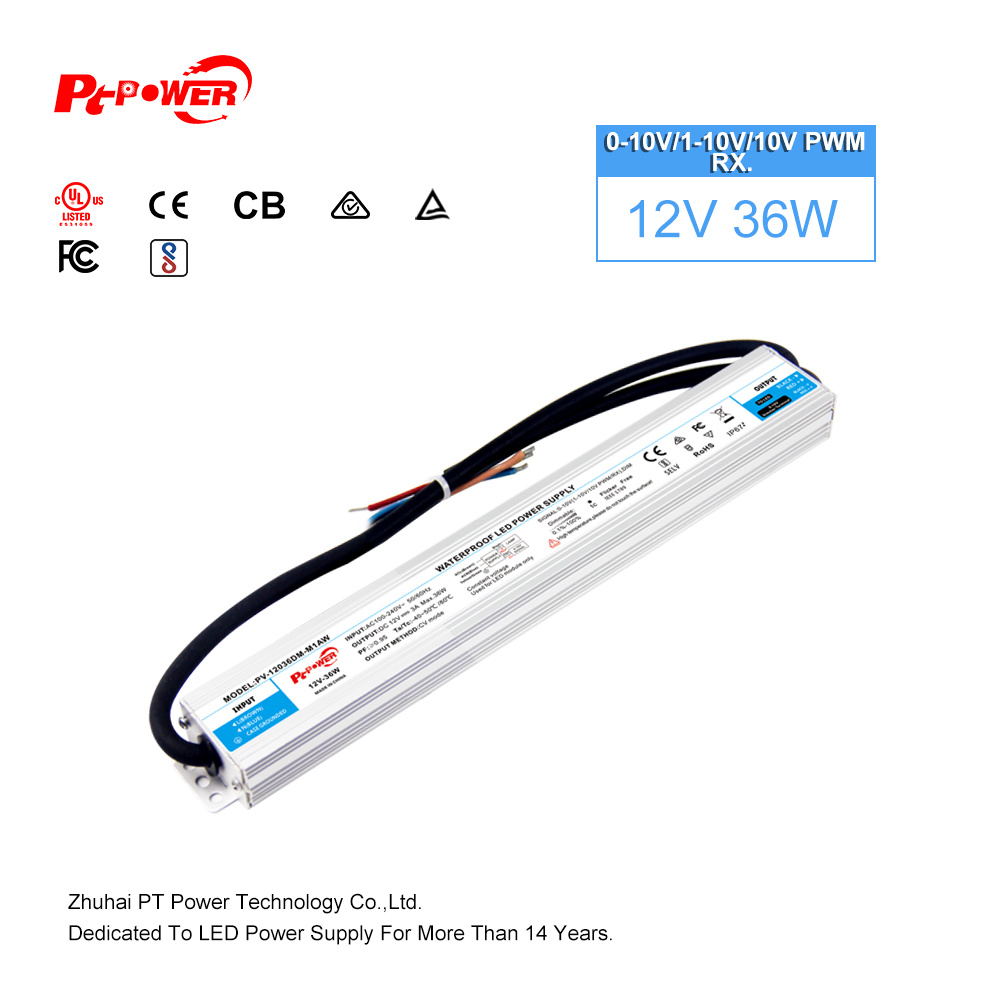

PV-12036DM-M1AW (36W 100-240V AC-DC 12V)

PV-12036DM-M1AW Type: Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Driver IP Rate:IP67 Power: 36W Input voltage:100-240VAC Output current:3A Output voltage:12VDC Efficiency:84% Power Factor: PF 0.95 Size:260*37*22mm
