PVL-12120DM2H2-A1-J (120W 100-277V AC-DC 12V, 2 Channel)

PVL-12120DM2H2-A1-J Type: Constant Voltage CCT Tunable& 0-10V,1-10V, 10V PWM,Potentiometer (4 in 1) Dim led driver with junction box Power: 120W IP Rate: IP65 Input voltage: 100-277V AC Output voltage: 12V DC Output current: 2*5A Efficiency: 90% Power factor: PF 0.95 Size: 198*130*45mm(L*W*H)


Product Features

Dimming mode: CCT Tunable& 0-10V, 1-10V, 10V PWM, Potentiometer (4 in 1)dimming IP Rate: IP65 Dimmable & Adjustable Color Temperature 2700K-6500K PWM dimming mode: Minimum Dimming depth of 0.1%, flicker-free dimmingfrom 0-100% Integral CV power supply with built-in junction box, no need to add separate shell High-performance power supply, built-in active PFC, power factor>0.95.THD<10%@120V maximum load Rotate knob in 7 levels to adjust color temperature in recycle:2700K-6500K Rotate the knob to adjust the voltage, the output voltage fine-tuning No minimum load, work perfectly under any load. With short-circuit,over-temperature, overload protection function Suitable for damp, dry and wet location Safety standard:UL8750(Class 2, Class P, TYPE HL),CAN/CSA-C22.2 No.250.13 EMCemission:FCCpart15 5 Year limited warranty

Product Details

Technical   Parameters

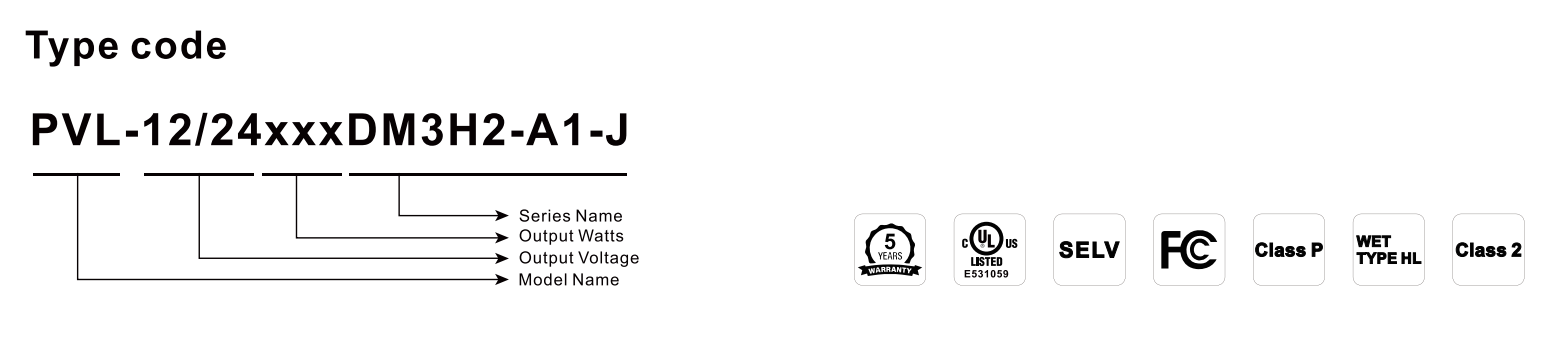

Model No.

Power

Input voltage range

Output voltage

Output current

Efficiency

N.W.

PF

Size

PVL-24096DM2-A1-J

96W

100-277VAC

24VDC

4A

≥90%

1150g

≥0.95

198*130*45mm

PVL-48096DM2-A1-J

96W

100-277VAC

48VDC

2A

≥90%

1150g

≥0.95

198*130*45mm

PVL-12120DM2H2-A1-J

120W

100-277VAC

12VDC

2*5A

≥90%

1150g

≥0.95

198*130*45mm

PVL-24120DM2H2-A1-J

120W

100-277VAC

24VDC

2*2.5A

≥90%

1150g

≥0.95

198*130*45mm

PVL-12180DM3H2-A1-J

180W

110-277VAC

12VDC

3*5A

≥91%

1400g

≥0.95

228*130*45mm

PVL-24192DM2H2-A1-J

192W

110-277VAC

24VDC

2*4A

≥91%

1400g

≥0.95

228*130*45mm

PVL-48192DM2H2-A1-J

192W

110-277VAC

48VDC

2*2A

≥91%

1400g

≥0.95

228*130*45mm

PVL-24288DM3H2-A1-J

288W

110-277VAC

24VDC

3*4A

≥91%

1880g

≥0.95

298*130*45mm

PVL-48288DM3H2-A1-J

288W

110-277VAC

48VDC

3*2A

≥91%

1880g

≥0.95

298*130*45mm
