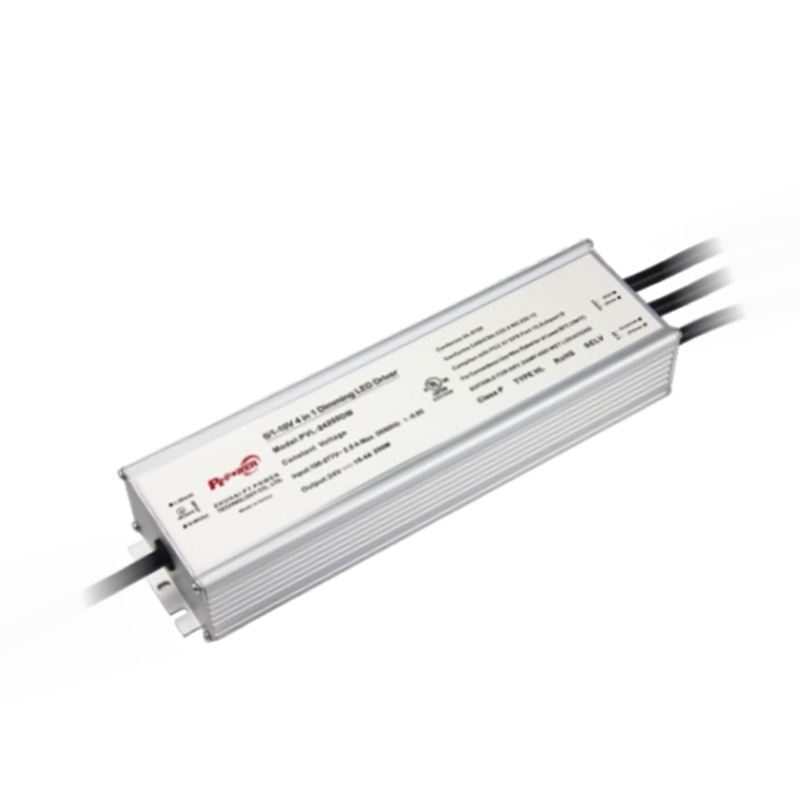

High-performance power supply, built-in active PFC, power factor>0.95 THD<10%@120V maximum load With short-circuit,over-temperature, overload protection function Suitable for damp, dry and wet location Safety standard: UL8750(Class 2, Class P, TYPE HL),CAN/CSA-C22.2 No.250.13 EMCemission:FCC part 15 5 Year limited warranty

Category:

IP67 UL PFC Regular Metal Shell

Keywords:

Product Inquiry

Product Details

Technical Parameters

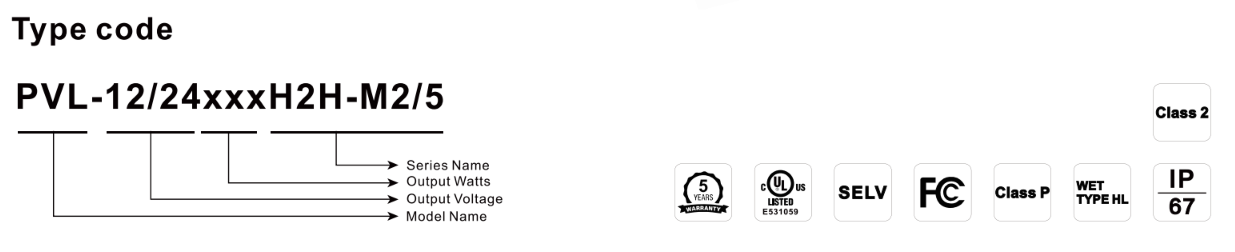

Model No.	Power	Input Voltage Range	Output Voltage	Output Current	Efficiency	N.W.	PF	Size
PVL-12030H-M2	30W	100-277VAC	12VDC	0-2.5A	≥80%	435g	≥0.95	170x60x23.5mm
PVL-24030H-M2	30W	100-277VAC	24VDC	0-1.25A	≥80%	435g	≥0.95	170x60x23.5mm
PVL-48030H-M2	30W	100-277VAC	48VDC	0-0.625A	≥80%	435g	20.95	170x60x23.5mm
PVL-12060H-M2	60W	100-277VAC	12VDC	0-5.0A	≥83%	620g	≥0.95	195x66x29.5mm
PVL-24060H-M2	60W	100-277VAC	24VDC	0-2.5A	≥83%	620g	≥0.95	195x66x29.5mm
PVL-48060H-M2	60W	100-277VAC	48VDC	0-1.25A	≥83%	620g	≥0.95	195x66x29.5mm
PVL-24096H-M5	96W	100-277VAC	24VDC	0-4A	≥90%	900g	≥0.95	205x68x39mm
PVL-48096H-M5	96W	100-277VAC	48VDC	0-2A	≥90%	900g	≥0.95	205x68x39mm
PVL-12120H2H-M5	120W	100-277VAC	12VDC	0-2*5A	≥90%	900g	≥0.95	205x68x39mm
PVL-24120H2H-M5	120W	100-277VAC	24VDC	0-2*2.5A	≥90%	900g	≥0.95	205x68x39mm
PVL-12180H3H-M5	180W	110-277VAC	12VDC	0-3*5A	≥91%	1050g	≥0.95	230x68x39mm
PVL-24192H2H-M5	192W	110-277VAC	24VDC	0-2*4A	≥91%	1050g	≥0.95	230x68x39mm
PVL-48192T2H-M5	192W	110-277VAC	48VDC	0-2*2A	≥91%	1050g	≥0.95	230x68x39mm
PVL-24288T3H-M5	288W	110-277VAC	24VDC	0-3*4A	≥91%	1700g	≥0.95	290x73x45mm
PVL-48288T3H-M5	288W	110-277VAC	48VDC	0-3*2A	≥91%	1700g	≥0.95	290x73x45mm
