Zhuhai Ptpower Electronic Technology Co., Ltd.

PV-24150H-M5AW (150W 100-240V AC-DC 24V)

PV-24150H-M5AW Type: Constant Voltage PFC LED Driver Power: 150W IP Rate: IP67 Input voltage:100-240V AC Output voltage:24V DC Output current: 6.25A Efficiency: 92% Power factor: PF 0.95 Size: 247*46*32mm(L*W*H)

Product Features

Constant voltage design (CV Mode) High efficiency power supply:Efficiency 92%,PF>0.95,THD<10% 100% full load aging Working temperature:-25°C~+70°C Protection grade:lP67 Comply with EU ERP directive on energy efficiency, Standby power consumption <0.5W With short-circuit protection: hiccup mode, troubleshooting, power recovery EMC standards:EN55015、EN61000-3-2、EN61000-3-3 Safety standards:EN61347-1、EN61347-2-13 No minimum loading requirements 5-Year warranty

Category:

IP67 PFC Driver - Regular Metal Shell

Keywords:

PT Power LED Driver

Constant Voltage PFC LED Driver

IP67 Waterproof led driver

Product Inquiry

PV-24150H-M5AW Datasheet.pdf

Product Details

Technical Parameters

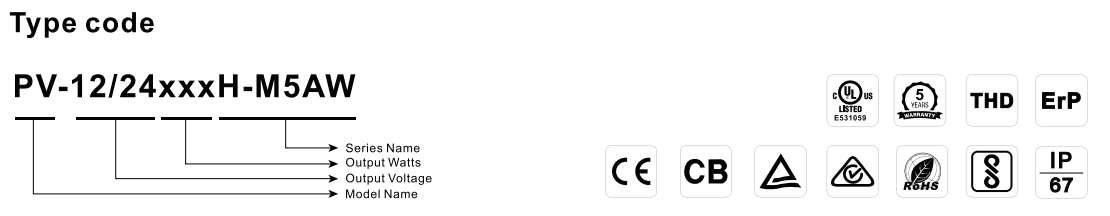

Model	Power	Input Voltage Range	Output Voltage	Output Current	Efficiency	Weight	Power Factor	Dimensions
PV-12060H-M5AW	60W	AC100-240V	DC12V	0-5.0A	≥89%	440g	≥0.95	1964632mm
PV-24060H-M5AW	60W	AC100-240V	DC24V	0-2.5A	≥89%	440g	≥0.95	1964632mm
PV-12100H-M5AW	100W	AC100-240V	DC12V	0-8.33A	≥91%	440g	≥0.95	1964632mm
PV-24100H-M5AW	100W	AC100-240V	DC24V	0-4.17A	≥92%	440g	≥0.95	1964632mm
PV-12150H-M5AW	150W	AC100-240V	DC12V	0-12.5A	≥91%	570g	≥0.95	2474632mm
PV-24150H-M5AW	150W	AC100-240V	DC24V	0-6.25A	≥92%	570g	≥0.95	2474632mm
PV-12200H-M5AW	200W	AC100-240V	DC12V	0-16.7A	≥91%	920g	≥0.95	2086839mm
PV-24200H-M5AW	200W	AC100-240V	DC24V	0-8.33A	≥93%	920g	≥0.95	2086839mm
PV-12250H-M5AW	250W	AC100-240V	DC12V	0-20.8A	≥91%	1200g	≥0.95	2207345mm
PV-24250H-M5AW	250W	AC100-240V	DC24V	0-10.4A	≥92%	1200g	≥0.95	2207345mm
PV-12300H-M5AW	300W	AC100-240V	DC12V	0-25.0A	≥91%	1200g	≥0.95	2207345mm
PV-24300H-M5AW	300W	AC100-240V	DC24V	0-12.5A	≥92%	1200g	≥0.95	2207345mm
