IP67 UL PFC High-PF With Junction Box

Integral CV power supply with built-in junction box, no need to add separate shell

High-performance power supply, built-in active PFC, power factor>0.95,
THD<10%@120V maximum load
With short-circuit, over-temperature, overload protection function
Suitable for damp, dry and wet location
Safety standard: UL8750(Class 2, Class P, TYPE HL),CAN/CSA-C22.2 No.250.13
EMC emission: FCC part 15

5 Year limited warranty

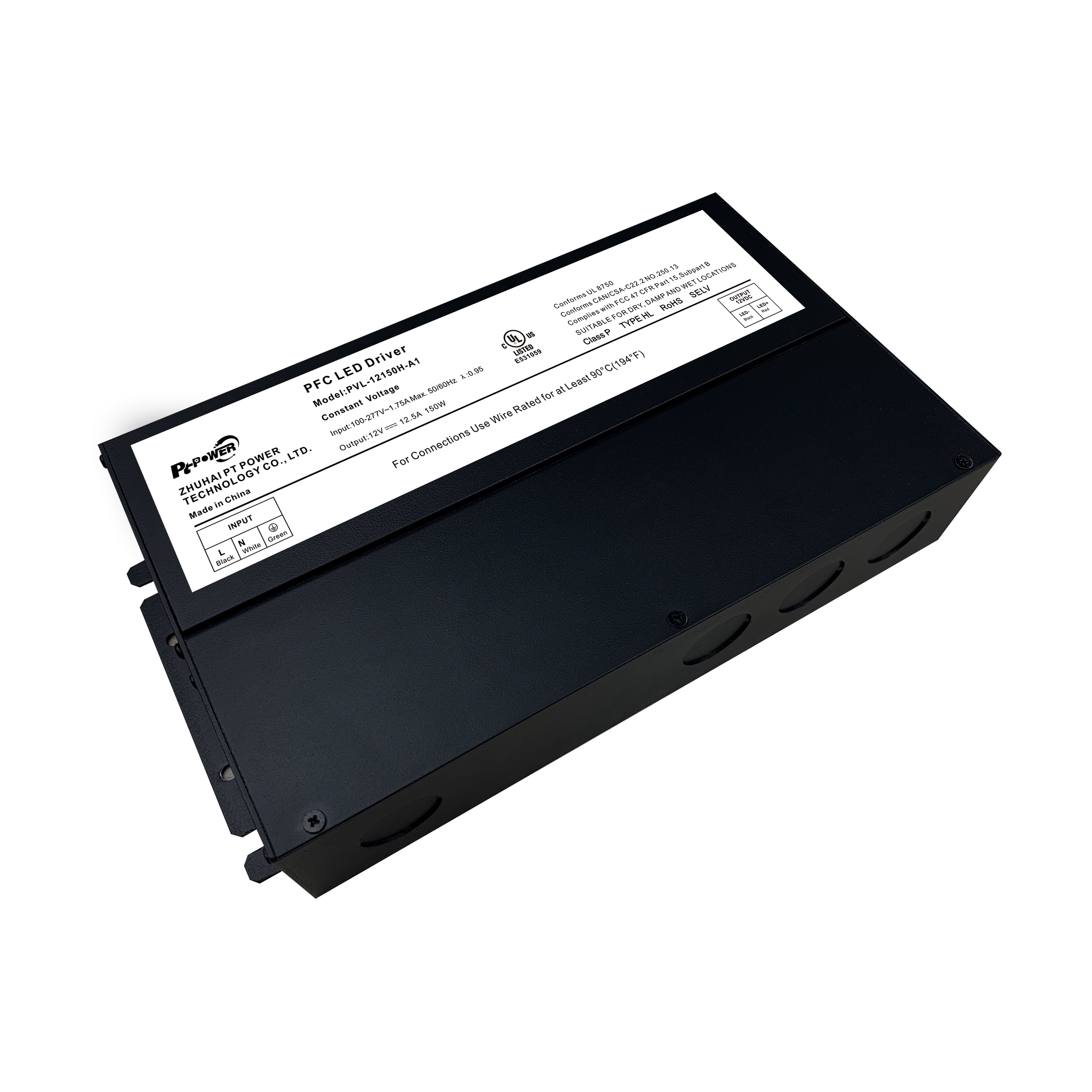

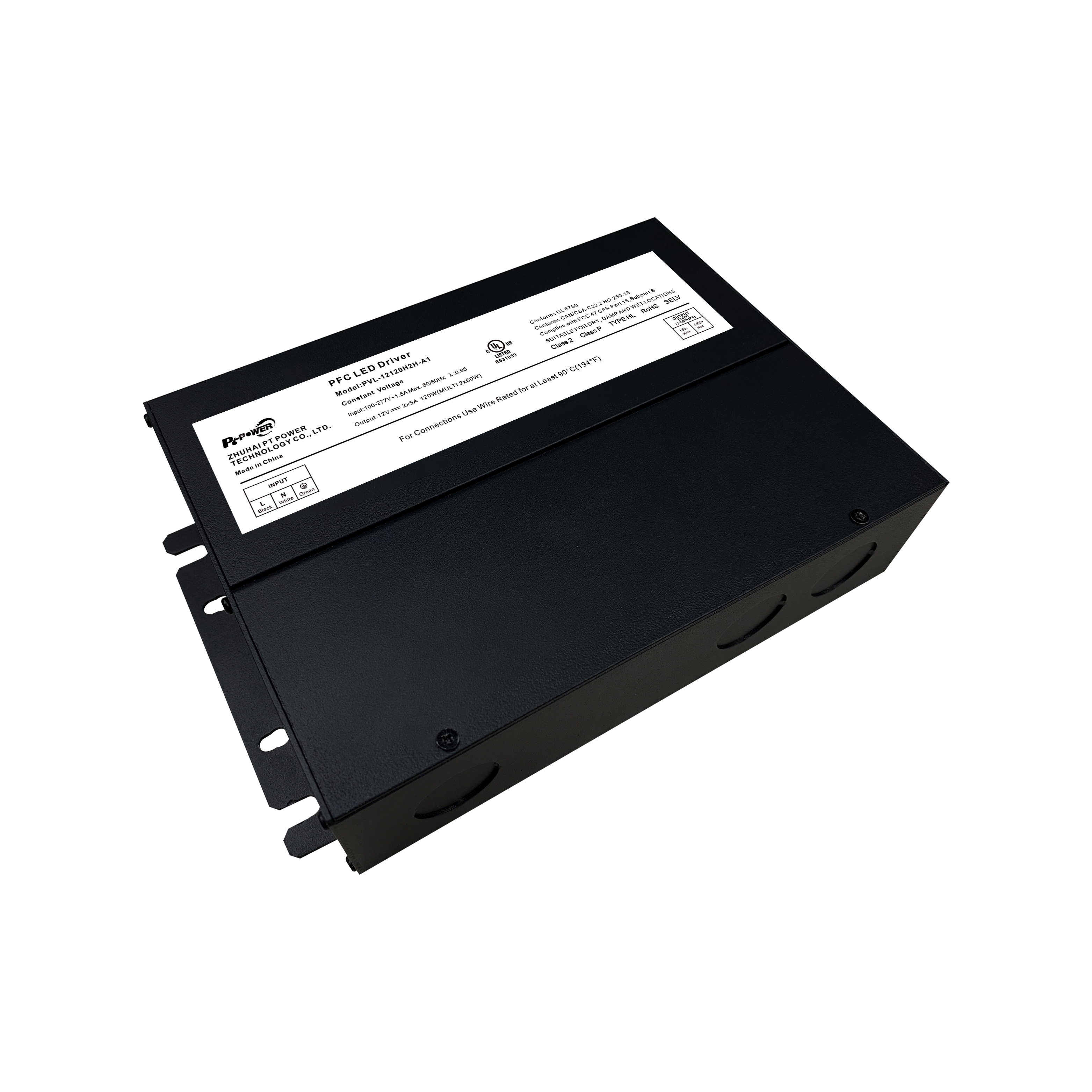

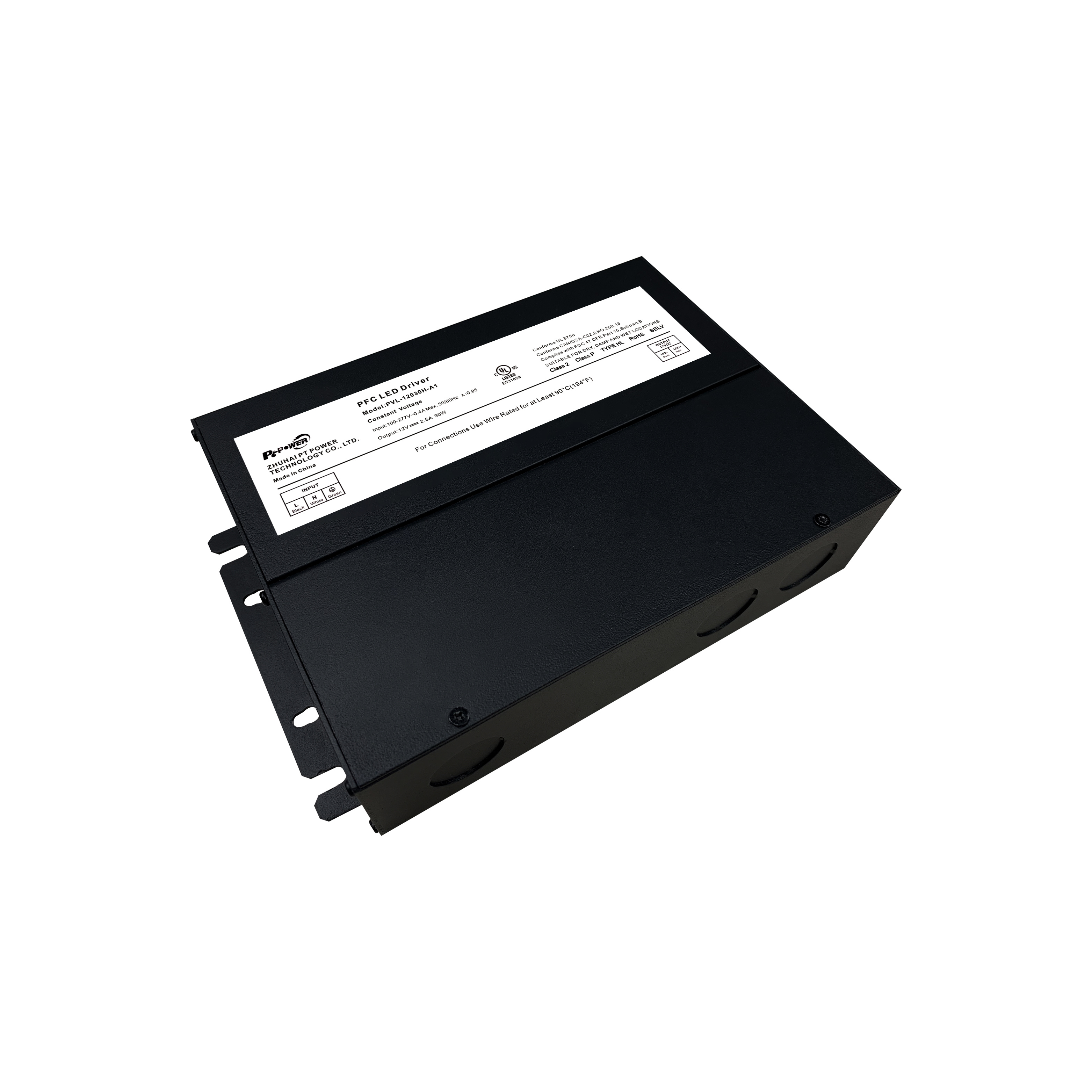

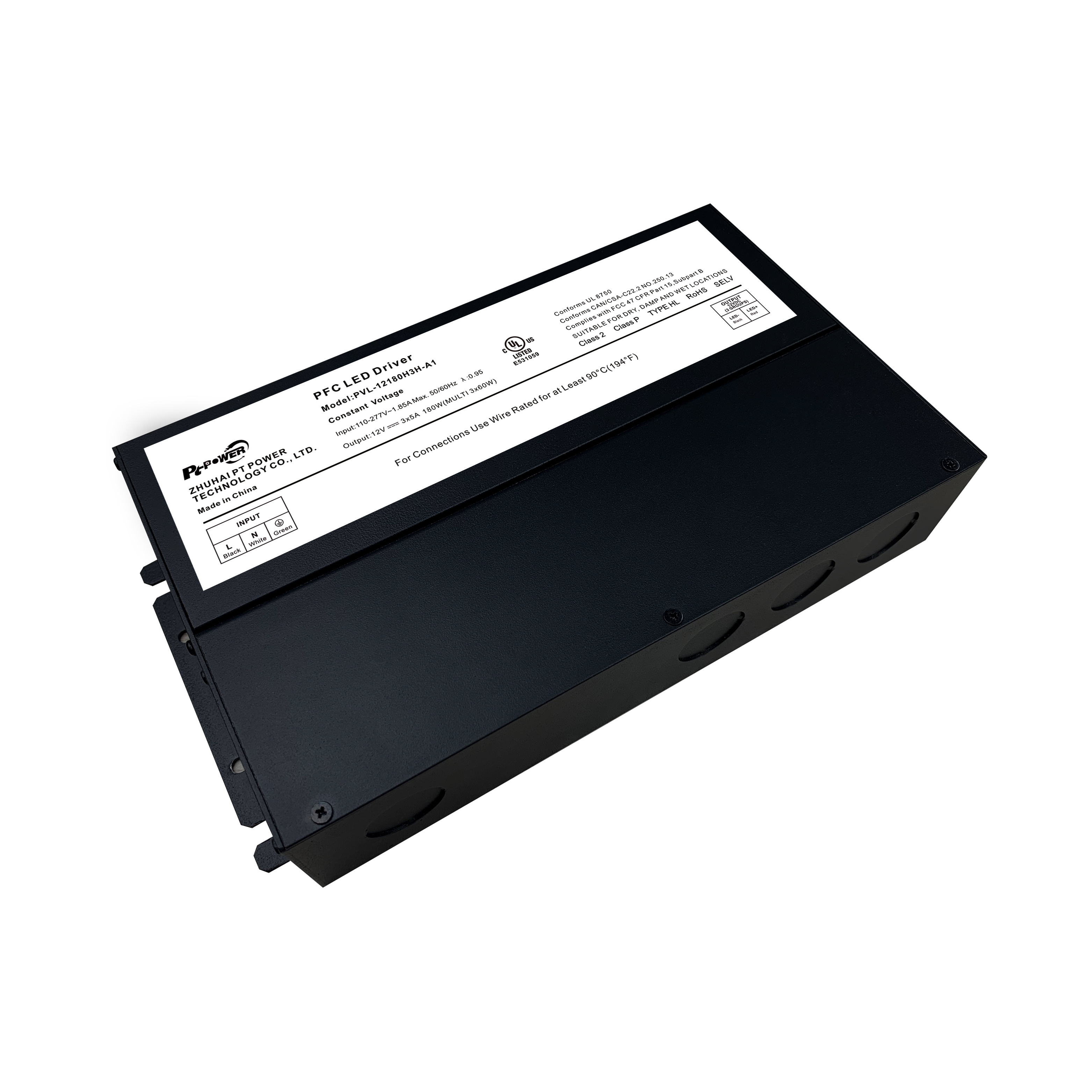

IP67 UL PFC High-PF With Junction Box

PVL-24060H-A1

PVL-12060H-A1

PVL-48030H-A1 (30W 100-277V AC-DC 48V)

PVL-48030H-A1 Type: Constant Voltage PFC LED Driver with Junction Box Power: 30W IP Rate: IP65 Input voltage: 100-277V AC Output voltage: 48V DC Output current: 0-0.625A Efficiency: 80% Power factor: PF0.95 Size: 168*130*45mm(L*W*H)

PVL-24030H-A1 (30W 100-277V AC-DC 24V)

PVL-24030H-A1 Type: Constant Voltage PFC LED Driver Power: 30W IP Rate: IP65 Input voltage: 100-277V AC Output voltage: 24V DC Output current: 0-2.5A Efficiency: 80% Power factor: PF0.95 Size: 168x130x45mm(L*W*H)

PVL-12030H-A1 (30W 100-277V AC-DC 12V)

PVL-12030H-A1 Type: Constant Voltage PFC LED Driver With Junction Box Power: 30W IP Rate: IP65 Input voltage: 100-277V AC Output voltage: 12V DC Output current: 0-2.5A Efficiency: 80% Power factor: PF0.95 Size: 168*130*45mm(L*W*H)
